Description

Mobile operating table with a floating tabletop made of carbon fiber polymer

The tabletop is made of carbon fiber with an X-ray absorption of 0.4 mm Al
The True Free Float™ movement technology in the imagiQ3 tabletop allows for control and freedom of movement in every direction
The tabletop moves smoothly and continuously longitudinally within a range of 900 mm and transversely within a range of 250 mm, and the tabletop locking position is controlled by a ball-bearing controller
Transverse tilts are achieved using isometric rotation technology, maintaining the image focus in the same place, minimizing the need to change the “C” arm position
The tabletop offers 25° Trendelenburg and 21° reverse Trendelenburg tilts
The tabletop allows for imaging patients up to 199.5 cm tall using a transparent head plate
360° imaging is possible over a length of 110.5 cm
Tabletop tilt, height, and table locking are controlled electrohydraulically using a remote control
4 double wheels
The entire tabletop is mounted The table base on the surface is adjustable using the remote control
Tabletop dimensions: 2400 x 550 mm
Load capacity: 300 kg
Operating table Stille imagiQ3

The True Free Float™ movement technology in the imagiQ3 tabletop allows for control and freedom of movement in every direction

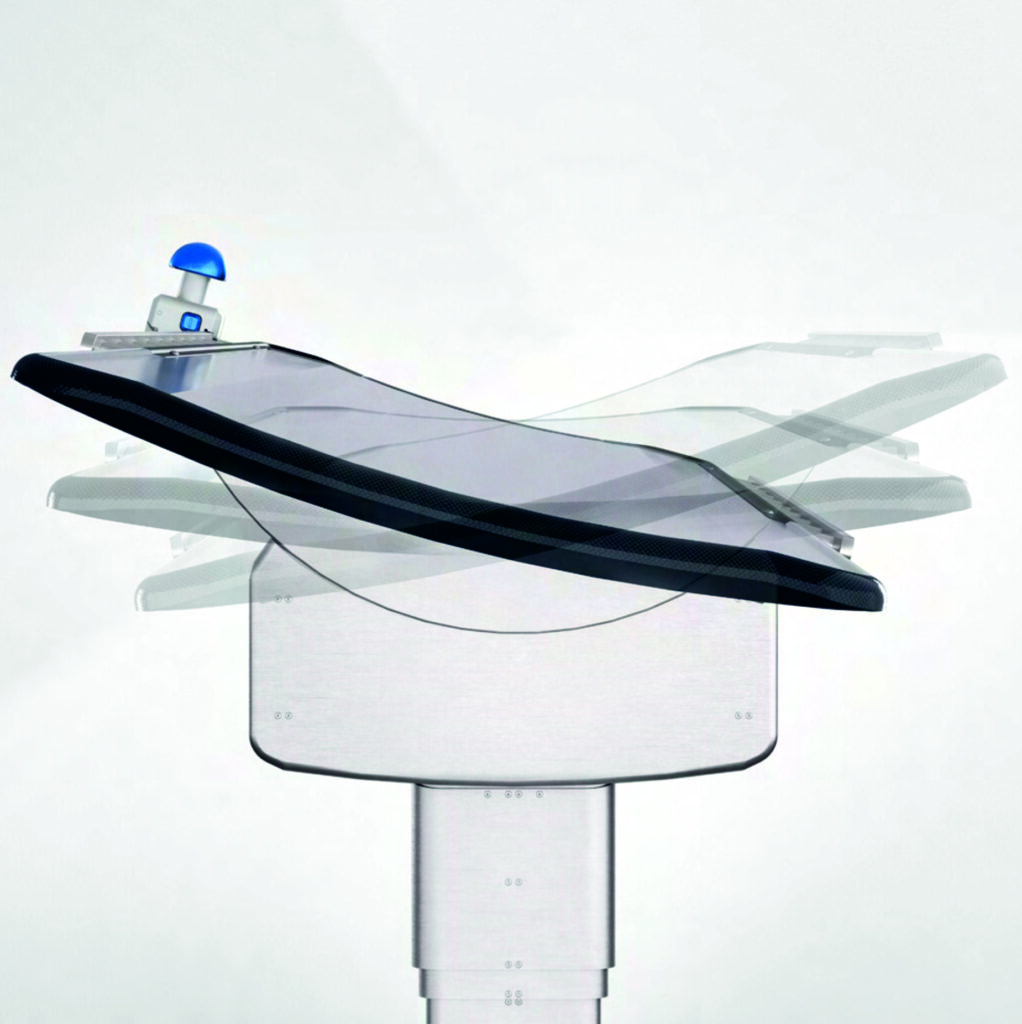

Lateral roll – “the rocker effect”
