Description

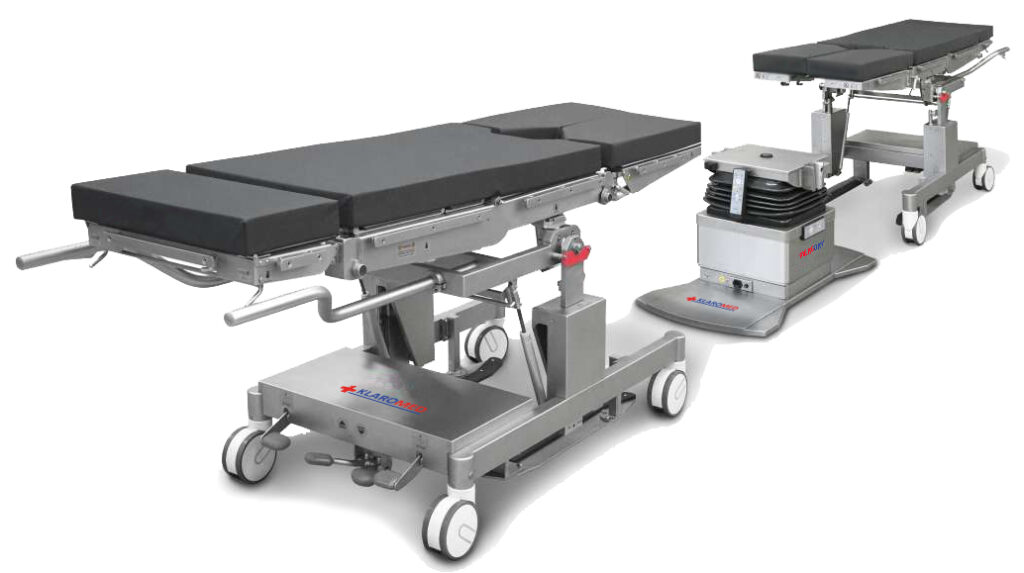

Interchangeable tabletop system – operating table

With built-in wheels or embedded in the ground. Height adjustment, longitudinal and lateral tilt – electrohydraulic drives
Control is via a wired and wireless remote control, as well as an emergency control panel located on the side of the column
The trolley with the tabletop can be approached from either side of the base
24V battery power supplied by a charging unit built into the tabletop column
Height adjustment: 670-1130 mm
Longitudinal tabletop travel: 320 mm

5-segment tabletop: plate headrest, two-piece backrest, lumbar section, two-piece leg section
Interchangeable leg section with headrest
Hook/click segment attachment system. Full-length C-arm transparency with a tunnel for X-ray cassette use
Significant tabletop tilt from the column of at least 1500 mm is possible
Soft mattress filled with viscoelastic material (shape memory effect for maximum anti-decubitus properties)
Head and foot section adjustment – via a gas spring. Two-way headrest adjustment (up/down and backward)
Chest lift: 105 mm. Tabletop length: 2200 mm
Tabletop width: 590 mm with side rails
Back section adjustment: -40°/+75°
Head section adjustment: -45°/+45°
Lateral tilt adjustment: +/-20°
Longitudinal tilt adjustment: +/-30°
Footrest adjustment range: -90°/+30°
Footrests can be tilted by: 180°
Static load capacity: 450 kg
Dynamic load capacity (in any tabletop position): 250 kg
