Description
Operating table

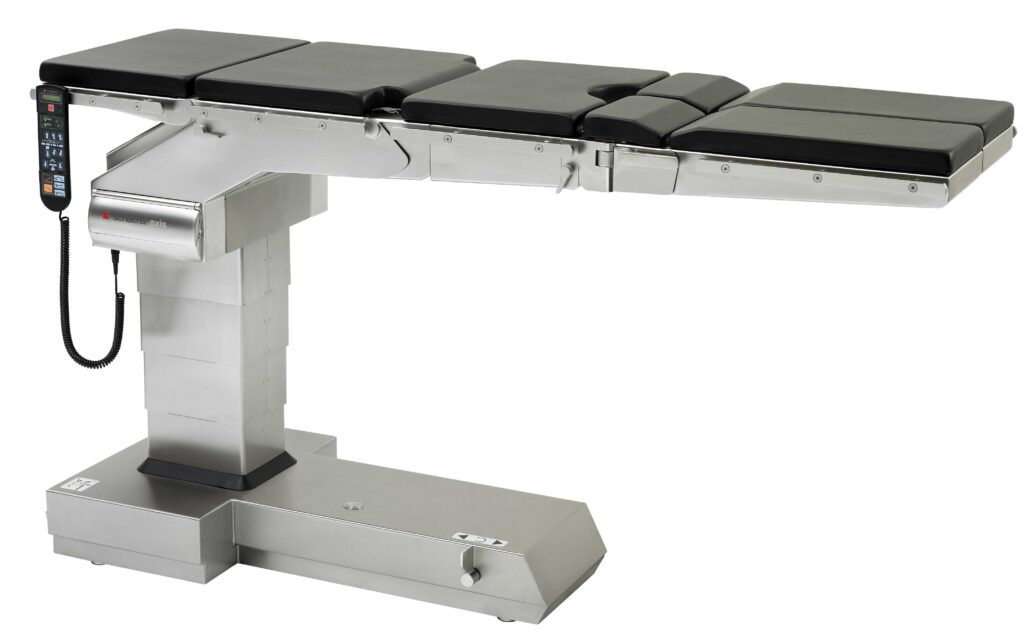

AXIS
AXIS operating table equipped with a double, primary and emergency, electro-hydraulic tabletop movement system (two independent battery systems, two independent hydraulic pump systems and two independent electrical control systems).
Product features:
- Made entirely of stainless steel, without a rubber cover on the column
- Asymmetric column design
- Load capacity: 350 kg
- Transparency: 1450 mm – availability of the “C” arm of the X-ray machine to scan the entire patient’s body over a length of at least 1450 mm without the need to change its position, move the table top, or change the configuration of the table top by adding an additional segment
- Four stabilizing/locking feet, automatically adjusting to the surface
- Dimensions: 1997 mm x 580 mm
- Top height: 734 mm -:- 1140 mm
- Seat tilt: + 76˚ / – 40˚
- Leg section tilt: + 15˚ / – 95˚
- Transverse tilt: 18˚
- Reverse Trendelenburg / Trendelenburg: 28˚
- “Flex”, “Reflex”, “0” position
Axis with Modular Traction System (MTS)
Axis with Carbon Spine Frame (CSF)
